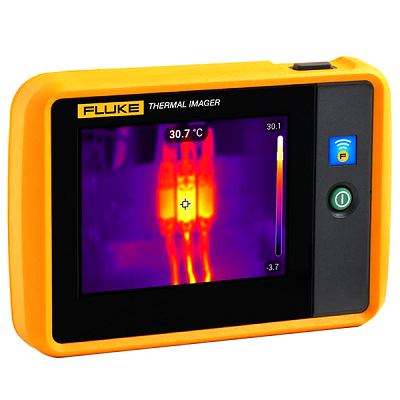

Fluke PTi120 Pocket Thermal Camera
Fluke PTi120 Pocket Thermal Camera is for business inspection In the proper place. At the proper time. With the proper tool. The larger the problem, the quicker you want to resolve it. The Fluke Pocket Thermal Camera places the energy to limit downtime in everyone`s hands. The first line of protection for clean troubleshooting. Stop preventing fires on the job, begin stopping them.
On the job, as it does the job. A digital digicam small is sufficient to hold each day without worry. Always at hand. Stands as much as dust and water. Can live to tell the tale of a 1-meter drop. Now stronger infrared inspections are proper for your pocket for short temperature scans of electrical equipment, machinery, and different assets.
Automatically keep your thermal photos in the proper folders. With Fluke Connect Asset Tagging you remove the tedium of sorting and organizing your infrared photos. By in reality scanning your asset`s QR code or barcode, your infrared photo and all your date and time-stamped facts can be saved in your predefined folders.
Send through WiFi or robotically add when you hook up with the community or pc through USB. It`s approximately time. Now you could greater correctly keep, locate, and record problems earlier than they come to be problems.
Get your selected degree of infrared each time. The 3.5” LCD touchscreen gives IR-Fusion™ to combo a seen mild photo with an infrared photo to greater without difficulty discovering problems. Slide your finger throughout the display screen to regulate the setting. Order at Tools Bangladesh and Get unfastened transport throughout Bangladesh.
Key Features: Fluke PTi120 Pocket Thermal Camera
Get the infrared troubleshooting power you need.
- Automatically organize and file thermal images with Fluke Connect Asset Tagging
- A fully radiometric thermal imager gives you measurement data to the pixel with 120 x 90 infrared resolution (10,800 pixels)
- 5” LCD touchscreen display for easy troubleshooting
- -20 °C to +150 °C temperature measurement range
- Six color palettes
- Can withstand drop up to 1 meter
- IP 54 enclosure rating
Specifications: Fluke PTi120 Pocket Thermal Camera
| Key Features |
| IFOV (spatial resolution) |
7.6 mRad |
| Infrared resolution |
120 x 90 (10,800 pixels) |
| Field of view |
50° H x 38° V |
| Distance to spot |
130:1 |
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to 150 °C |
| Focus system |
Fixed focus, minimum focus distance 22.8 cm |
| USB |
Mini USB used to transfer image to PC |
| Wifi |
Yes |
| Fluke Connect™ Instant Upload |
Yes, connect your camera to your building’s WiFi network, and images taken automatically upload to the Fluke Connect™ system or your local server for storage and viewing on your PC (802.11 bgn (2.4 GHz)).Coming soon |
| Image quality |
| IR-Fusion technology |
Yes, adds the context of the visible details to your infrared image |
| AutoBlend mode |
Continuous 0% to 100% |
| Touchscreen display |
3.5’’ (landscape), 320 x 240 LCD |
| Rugged, ergonomic design |
Yes |
| Thermal sensitivity (NETD) |
60 mK |
| Frame rate |
9 Hz |
| Data storage and image capture |
| Memory |
≥ 2GB internal flash memory |
| Image capture, review, save mechanism |
One-handed image capture, review, and save capability |
| Image file formats |
Non-radiometric (jpeg), or fully radiometric (.is2); no analysis software required for non-radiometric (jpeg) files |
| Software |
Fluke Connect® desktop software—full analysis and reporting software with access to the Fluke Connect system |
| Export file formats with software |
JPG, IS2 |
| Measurement range |
-20 °C ~ 150 °C |
| Battery |
| Batteries (rechargable) |
Internal rechargeable lithium ion battery |
| Battery life |
≥ 2 hours continuous (without WiFi) |
| Battery charging time |
≤ 1.5 hours |
| Battery charging system |
Micro USB cord from product to PC |
| AC operation |
With separate AC to USB adapter. Not included in box. |
| Power saving |
Automatic Shutdown: 5, 10, 15 and 20 minutes or never |
| Temperature measurement |
| Temperature measurement range (not calibrated below -10 °C) |
-20 °C to 150 °C |
| Accuracy |
Target temp at or over 0 °C: Accuracy: ± 2 °C or ± 2% |
| On-screen emissivity correction |
Yes |
| On-screen reflected background temperature compensation |
Yes |
| Color palettes |
| Standard palettes |
6: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale |
| General specifications |
| Infrared spectral band |
8 μm to 14 μm (long wave) |
| Operating temperature |
-10 °C to +50 °C (14 °F to 122 °F) |
| Storage temperature |
-40 °C to +70 °C (-40 °F to 158 °F) |
| Relative humidity |
95% non-condensing |
| Center-point temperature |
Yes |
| Spot temperature |
Hot and cold spot markers |
| Safety |
EN 61010-1: CAT none, pollution degree 2, EN 60825-1: Class 2, EN 60529, EN 62133 (lithium battery) |
| Electromagnetic compatibility |
EN301 489-1 V2.1.1 EN301489-17 V3.1.1 |
| US FCC |
CFR, Part 15C |
| Vibration and shock |
2G, IEC 68-2-6 and 25G, IEC 68-2-29 |
| Drop |
1 meter |
| Size (H x W x L) |
8.9 cm x 12.7 cm x 2.5 cm (3.5 in x 5.0 in x 1.0 in) |
| Weight (battery included) |
0.233 kg (0.514 lb) |
| Enclosure rating |
IP54 |
| Warranty |
Two-years |
| Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
