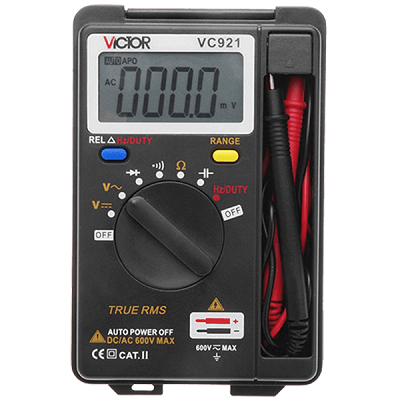

Model: Victor VC921 Digital Multimeter
The VICTOR VC921 LCD Digital Voltmeter Ohmmeter OHM Multimeter is a multi-operational DMM for an extensive style of car and family applications. A flip-door lid can in addition be used because the meter stands for ease of measurement. It adeptly measures DC voltage, AC voltage, resistance, capacitance, and frequency. Plus, it runs a diode take look at and detects the faithfulness cycle. The huge display gives easy-to-gate virtual outcomes in outsized numbers. Strong touching-interference completion guarantees it`s excessive to provide an upshot. Slim and fresh, it is simple to carry. Don't hesitate to reserve now!
Key Features: Victor VC921 Digital Multimeter
- Measures AC/DC voltage & resistance
- Measures capacitance & frequency
- Flip-top case
- Pocket-sized
- Hardwired leads
- Dedicated positions
- Size: 117mm
- Weight: 108g
Specifications:
DC Voltage: 400mV / 4V / 40V / 400V / 600V ±(0.5%+4)
AC Voltage: 400mV / 4V / 40V / 400V / 600V ±(0.8%+6)
Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ ±(0.8%+4)
Capacitance: 4nF / 40nF / 400nf / 4uF / 40uF / 200uF ±(3.5%+8)
Frequency: 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz ±(0.5%+4)
Special Function: Diode Test, Continuity Buzzer, Data Hold, Low Battery Indication, Function Protection and Duty Cycle Measuring
Input Impedance: 10MΩ, >40MΩ(400mV)
Sampling Rate: 3 times/s
AC Frequency Response: 40~400Hz
Operation Way: Auto Range
Max. Display: 3999
Power Supply: 2 * 1.5 V AAA Batteries (not included)
Meter Color: Dark Gray
Meter Weight: 134g / 4.73oz
Meter Size: 12 * 7.7 * 2cm / 4.72 * 3 * 0.79in (L * W * H)
Package Size: 16 * 9 * 3cm / 6.3 * 3.54 * 1.18in (L * W * H)
Package Weight: 164g / 5.81oz
