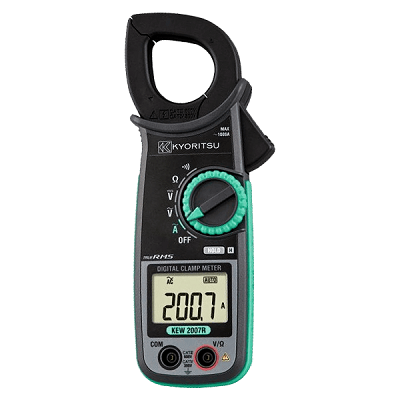

Model: Kyoritsu 2007R Digital Clamp Meter
Kyoritsu 2007R Digital Clamp Meter has correct readings with True RMS 600/1000A auto-ranging. One of the first-class matters of approximately Kyoritsu 2007R is that it constantly provides proper consequences in any environment.
Kyoritsu 2007R Digital Clamp Meter has greater principal functions that make your activity easier. We are presenting the first-class and maximum dependable device Kyoritsu 2007R Digital Clamp Meter in Bangladesh at a first-class price.
Key Features: Kyoritsu 2007R Digital Clamp Meter
- Fully Safety jaw
- The ergonomic over-molded body gives convenient one-hand operation
- Large easy-to-read display with 0.1A resolution
- Accurate reading with True RMS 600/1000A auto-ranging
- Long battery life
- Safety Standard IEC 61010-1 CAT IV 300V / CAT III 600V
Specifications:
| AC A |
600.0/1000A (Auto-ranging)
±1.5%rdg±4dgt [45 - 65Hz]
±2.0%rdg±4dgt [40 - 400Hz] |
| AC V |
600.0V
±1.2%rdg±3dgt [45 - 65Hz]
±1.5%rdg±4dgt [40 - 400Hz] |
| DC V |
600.0V
±1.2%rdg±3dgt |
| Ω |
600.0Ω/6.000kΩ (Auto-ranging)
±1.3%rdg±5dgt (600Ω)
±2.0%rdg±3dgt (6.000kΩ) |
| Continuity buzzer |
600Ω (Buzzer sounds below 90Ω) |
| Conductor size |
φ33mm max. |
| Applicable standards |
IEC 61010-1 CAT IV 300V, CAT III 600V Pollution degree 2
IEC 61010-031, IEC 61010-2-032, IEC 61010-2-033,
IEC 61326-2-2(EMC), IEC 60529 IP40, EN 50581(RoHS) |
| Power source |
R03/LR03 (AAA) (1.5V) × 2 |
| Continuous measuring time |
Approx.170 hours (when R03 is used)
(Auto power save : approx. 10 minutes) |
| Dimensions |
204(L) × 81(W) × 36(D)mm |
| Weight |
220g Approx. (including batteries) |
| Included Accessories |
7066A (Test leads)
9079 (Carrying case)
R03 (AAA) × 2,
Instruction Manual |
