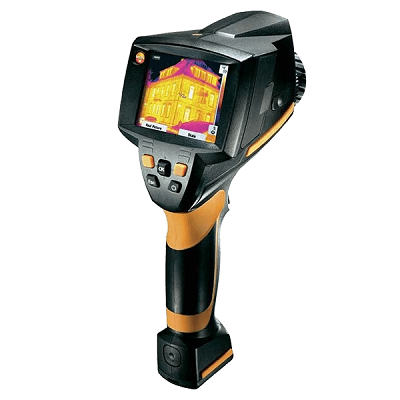

Testo 875-2i - Infrared Camera
With the Testo 875-2i thermal digital digicam, you may make a lead in your commercial and constructing thermography venture even greater without problems and speedily.
The integrated virtual digital digicam and voice recording thru the headset make documentation and venture of thermal and actual pix easier. One of the pleasant web pages is Unique Tools BD for electric devices in Bangladesh. So, there's no hazard to get an unauthorized device from here. You may also expectantly keep it here.
Key Features: Testo 875-2i - Infrared Camera
- Very good image quality: IR resolution 160 × 120 pixels, with SuperResolution Technology 320 × 240 pixels
- Thermal sensitivity < 50 mK, high-quality 32° × 23° lens, automatic hot/cold spot detection, and optional temperature measurement up to +550 °C
- Including a built-in digital camera and voice recording via a headset
- Building thermography: Direct display of the risk of the mold via traffic light colors
Specifications: Testo 875-2i - Infrared Camera
| Infrared image output |
|
Focus
|
manual
|
|
Infrared resolution
|
160 x 120 pixels
|
|
Image refresh rate
|
33 Hz
|
|
SuperResolution (IFOV)
|
2.1 mrad (Tele: 0.6 mrad)
|
|
SuperResolution (Pixel)
|
320 x 240 pixels
|
|
Geometric resolution (IFOV)
|
3.3 mrad (Tele: 1.0 mrad)
|
|
Minimum focus distance
|
0.1 m (Tele: 0.5 m)
|
|
Field of view
|
32° x 23°
|
|
Thermal sensitivity
|
˂ 50 mK at +30 °C
|
| Image output visual |
|
Minimum focus distance
|
0.4 m
|
|
Image size
|
640 x 480 pixels
|
| Image presentation |
|
Display option
|
IR image only; real image only; IR image / real image
|
|
Number of colours
|
10
|
|
Colours
|
10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)
|
|
Display type
|
3.5" LCD with 320 x 240 pixels
|
|
Video output
|
USB 2.0
|
| Measurement |
|
Reflected temperature
|
manual
|
|
Measuring range
|
-30 to +100°C; 0 to +350 °C (switchable)
|
|
High temperature measuring
|
+350 to +550 °C
|
|
Accuracy
|
±2 °C, ±2 % of m.v. (±3 °C of m.v. at -30 to -22 °C)
|
|
Accuracy high temperature
|
±3 % of m.v. at +350 to +550 °C
|
| Measuring function |
|
Surface moisture distribution
|
Included
|
|
Humidity measurement
|
Optional
|
|
Solar mode – manual
|
Included
|
|
Analysis function
|
Up to 2 measurement points, hot/cold spot recognition, isotherms, area measurement (min/max on area)
|
| Imager equipment |
|
Digital camera
|
Included
|
|
Video streaming
|
Included
|
|
Voice recording
|
wired headset
|
|
Laser
|
Included
|
|
Exchangeable lenses
|
9° x 7°
|
|
Standard lens
|
32° x 23°
|
|
Power-LED
|
Included
|
| Imager storage |
|
File format image
|
.bmt; export option in .bmp; .jpg; .png; .csv; .xls
|
|
Storage device
|
SD card 2GB (approx. 2.000 images)
|
| Power supply |
|
Battery type
|
Fast-charging, Li-ion battery can be changed on-site
|
|
Operating time
|
4 h
|
|
Charging options
|
In instrument / charger (optional)
|
|
Mains operation
|
yes
|
| Ambient Condition |
|
Storage temperature
|
-30 °C; 60 °C
|
|
Operating temperature
|
-15 °C; 40 °C
|
|
Housing protection class
|
IP54
|
|
Vibration
|
2G
|
|
Air humidity
|
20 to 80 %RH non-condensing
|
| Physical specification |
|
Weight
|
900 g
|
|
Tripod mounting
|
M6
|
|
Housing
|
ABS
|
|
Dimensions
|
152 x 108 x 262
|
| PC software |
|
System requirements
|
Windows XP (Service Pack 3); Windows Vista; Windows 7 (Service Pack 1); Windows 8; Interface: USB 2.0
|
| Standards, tests, warrenty |
|
EU-/EG-guidelines
|
2004/108/EG
|
